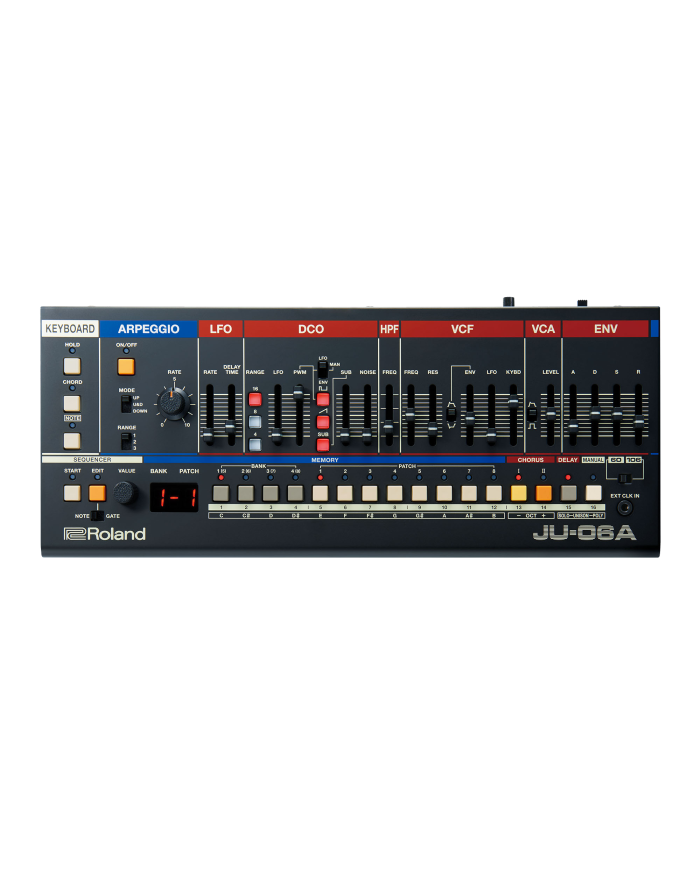

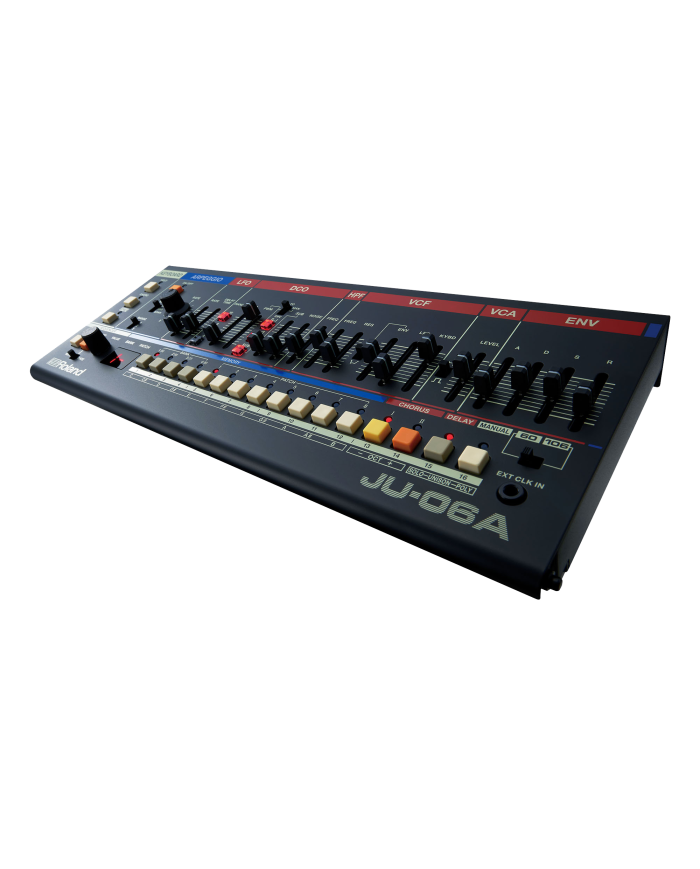

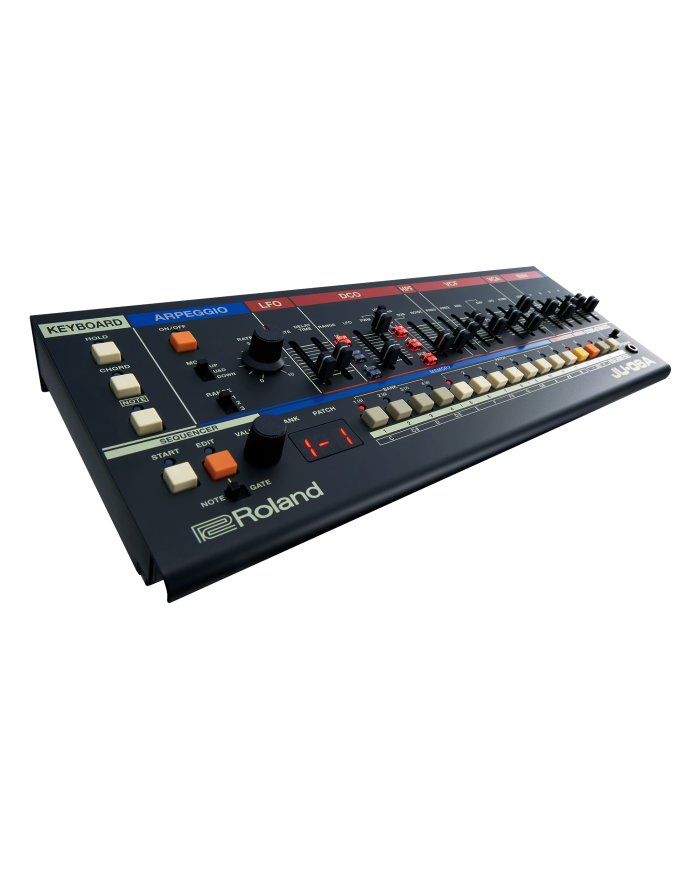

ROLAND BOUTIQUE JU-06A

- Sound Generator Section:
Polyphonie max: 4 voices
Sound Mode: 2 types (60/106)

- User Memory:
Sound Patch: 64 + 64 (8 patches x 8 banks pre each 60 and 106 mode)
Sequencer Pattern: 16
Chord Memory: 16

- Controle:
VOLUME knob

LFO Section:
RATE slider
DELAY TIME slider

DCO Section:
RANGE buttons 16', 8', 4'
LFO slider
PWM slider
PWM mode switch
SQUARE, SAW, SUB buttons
SUB oscillator slider
NOISE slider

HPF Section:
CUTOFF FREQ slider

VCF Section:
CUTOFF FREQ slider
RESONANCE slider
Polarity switch
ENV slider
LFO slider
KEY FOLLOW slider

VCA Section:
Control signal switch
VCA level slider

ENV Section:
Attack Time slider
Decay Time slider
Sustain Level slider
Release Time slider

CHORUS Section:
CHORUS 1, CHORUS 2 buttons

DELAY Section:
DELAY button

KEYBOARD Section:
HOLD button
CHORD button
NOTE button

ARPEGGIO Section:
ON/OFF button
MODE switch (UP/U&D/DOWN)
RANGE switch (1/2/3)
RATE knob

SEQUENCER Section:
START button
EDIT button
VALUE knob
NOTE/GATE select switch

Sound Mode select switch (60/106):
BANK 1 (5)--4 (8) buttons
PATCH NUMBER 1--8 buttons
MANUAL button

Power switch

- Effects
Chorus: 2
Delay

- Step Sequencer:
16 steps
1 note (Monophonic)

-Ecran:
7 segments, 3 characters (LED)

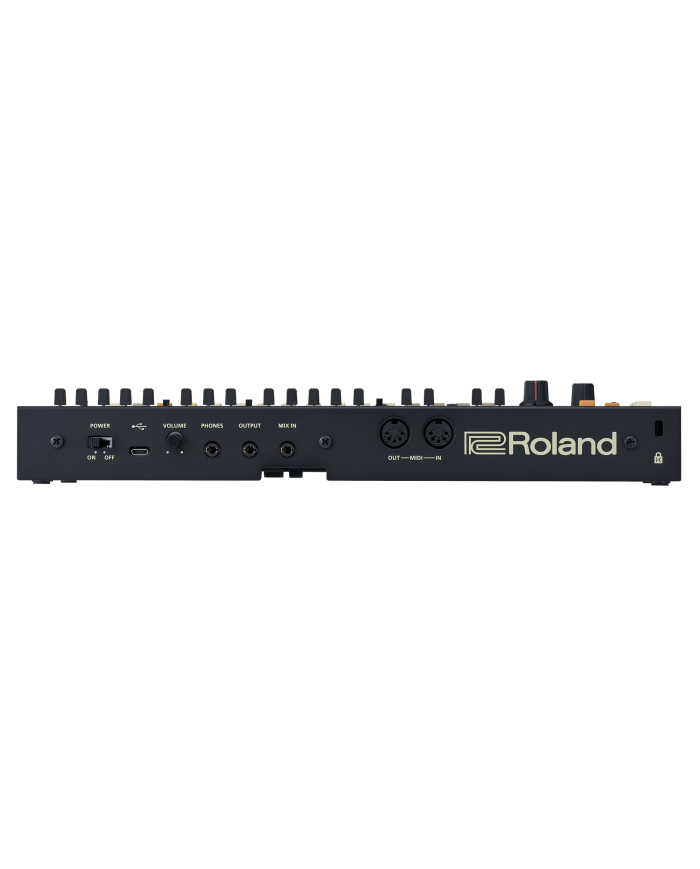

- Connectiques:
EXT CLOCK IN jack: Mono minijack
PHONES jack: Stereo minijack
OUTPUT jack: Stereo minijack
MIX IN jack: Stereo minijack
MIDI (IN, OUT) connectors
USB port: MicroB type (Audio, MIDI)

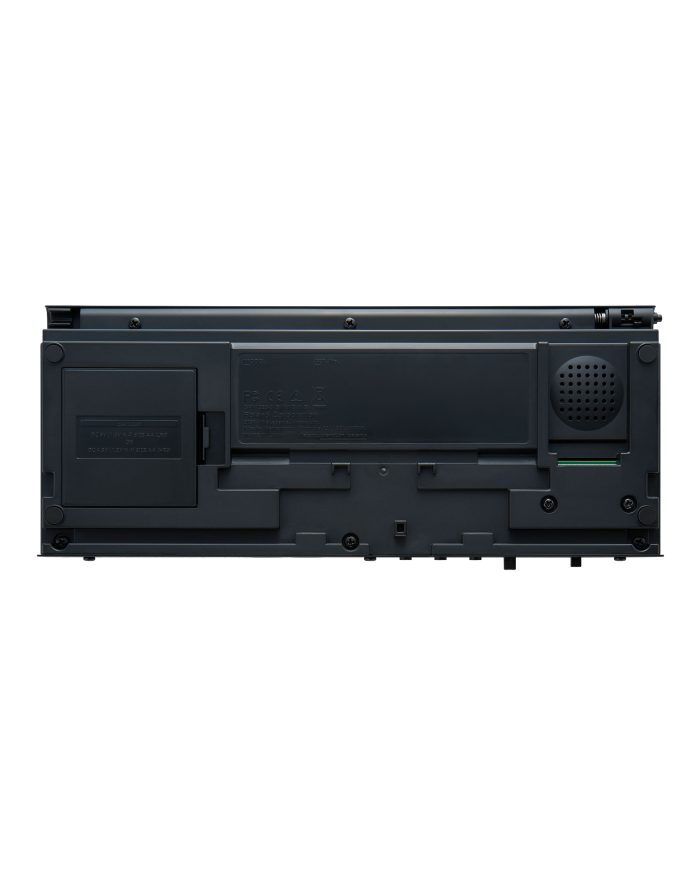

- Alimentation:

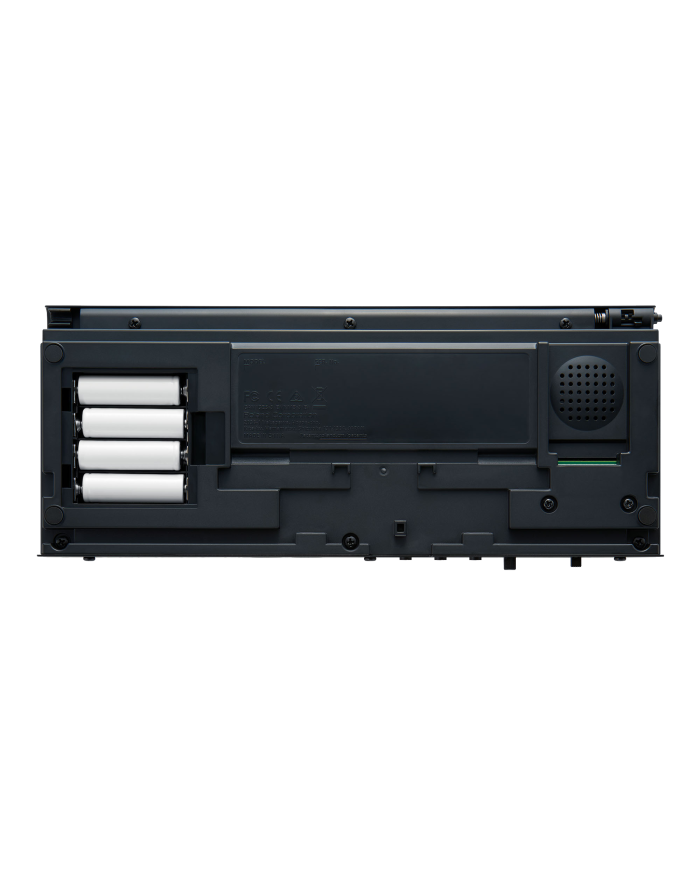

Ni-MH battery (AA, HR6) x 4
Piles:  (AA, LR6) x 4
USB bus power

- Impédance:
500 mA (USB bus power)

- Durée de la batterie en utilisation continu: Approx. 6 heures
* Cela peut varier en fonction de la qualité ou de l'ancienneté de la batterie utilisée.

- Dimensions:
300 (W) x 128 (D) x 49 (H) mm
11-13/16 (W) x 5-1/16 (D) x 1-15/16 (H) inches

- Poids (batteries incluses)
995 g
2 lbs 4 oz

- Accessoires:
Mode d'emploi
(AA, LR6) x 4

- Options (vendues séparément)
Keyboard unit: K-25m
Boutique Dock:DK-01
